Urban Form Wall Mount Bench

Urban Form Wall Mount Bench

  • Model Number:
    UFWM-17, UFWM-24

Designer Notes

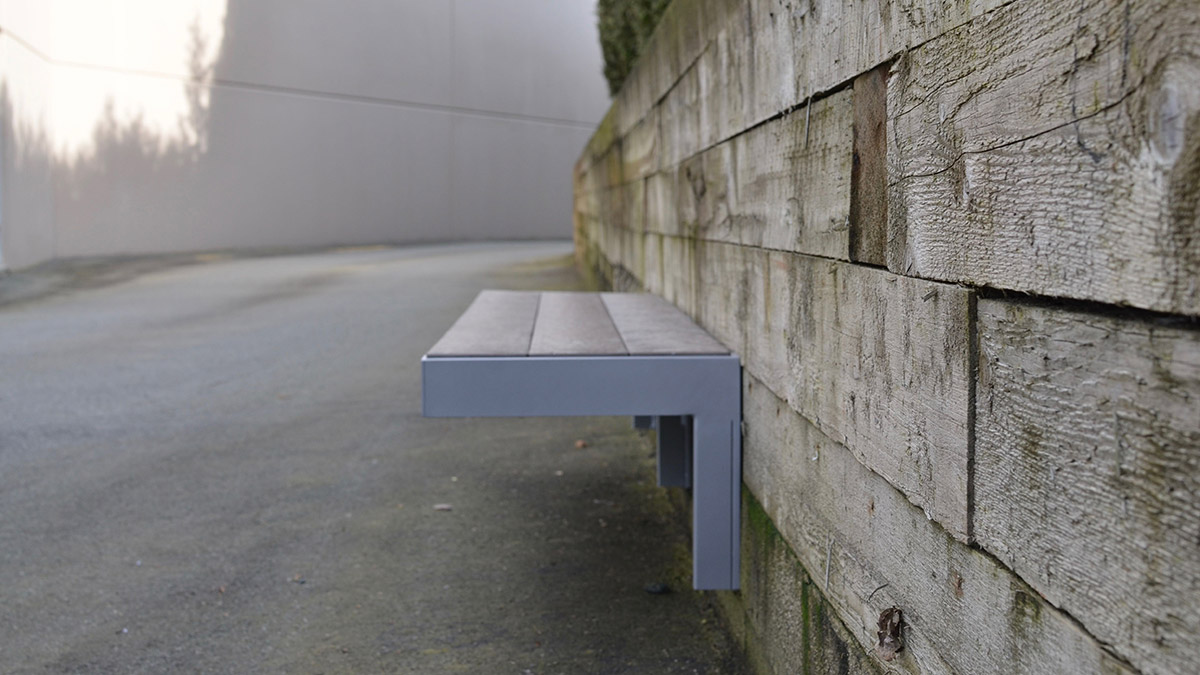

Taking its design cues from the Urban Form line, this cantilevered wall-mounted bench system is as straightforward as it is attractive. Crisp, modern lines and subtle motifs on the supports complete the look. This bench is great in applications where space is at a premium and where ease of cleaning around the base of a traditional bench could be cumbersome. The overall impression is that the bench is ‘floating’ along the wall and the capped lumber ends add to the aesthetic appeal.

Determining what is required for every application is simple. Each bench requires 2 ends (UFWM-17E). The number of supports (UFWM-17S) required is determined by measuring the total length and dividing it up to a maximum span distances of 20”. For example, a 72” bench would have 3 supports 18“ apart from each other and a 60” bench would have 2 supports 20” apart from each other. The lumber comes in 3 lengths 6ft, 10ft and 12ft. The seats are 3 boards deep giving a comfortable 17” seating surface.

100% Recycled Plastic Lumber Colours *

Wishbone recycled plastic boards are non-toxic, ultra-durable and low maintenance.  They are easy to clean and can be renewed from UV Damage.  They are an excellent material for the demands of outdoor commercial furniture.

Unstained Natural Wood Alternatives *

For applications where wood is preferred, Wishbone has several options.  Stains specified by the cusomer can optionally be applied by Wishbone during manufacture.

Super Durable Standard Powder Coat Colours *

*Due to variations in the types of screen resolutions available, colors represented here may vary slightly from the actual colors. Please contact Wishbone if you would like to have actual samples.

Material Specifications

  • 100% Recycled Plastic Slats
  • Western Red Cedar
  • Accoya Modified Pine

Customized Solutions

  • Custom Powder Coating (Setup Charges May Apply)

  • 2 x 4 Recycled Plastic Planks. (Must specify)

  • Bolt on Arm Rests (UFWM-ARM)

  • Customizable to any Length

  • INST-1 Stainless Steel Bolt-Down Kit ( Installation Example )

Product Dimensions

Seat End UFWM-17E

Total Height : 12.5 inches / 32 cm
Total Depth : 18 inches  45 cm
Seat Height : 12.5 inches / 32 cm
Seat Depth : 17 inches  44 cm
Weight : 2 lbs / 1 kg

Seat Support UFWM-17S

Total Height : 12.5 inches / 32 cm
Total Depth : 18 inches  45 cm
Seat Height : 12.5 inches / 32 cm
Seat Depth : 17 inches  44 cm
Weight : 2 lbs / 1 kg

Plastic Lumber

Thickness : 1 7/16 inches / 4 cm
Depth : 5 3/8 inches / 14 cm
Weight : 3.2 lbs/ft / 4.6 kg/meter

Recycled Content

  • Recycled Content By Weight (5 ft bench): 86%
  • 100% Recyclable
